24 July 2020

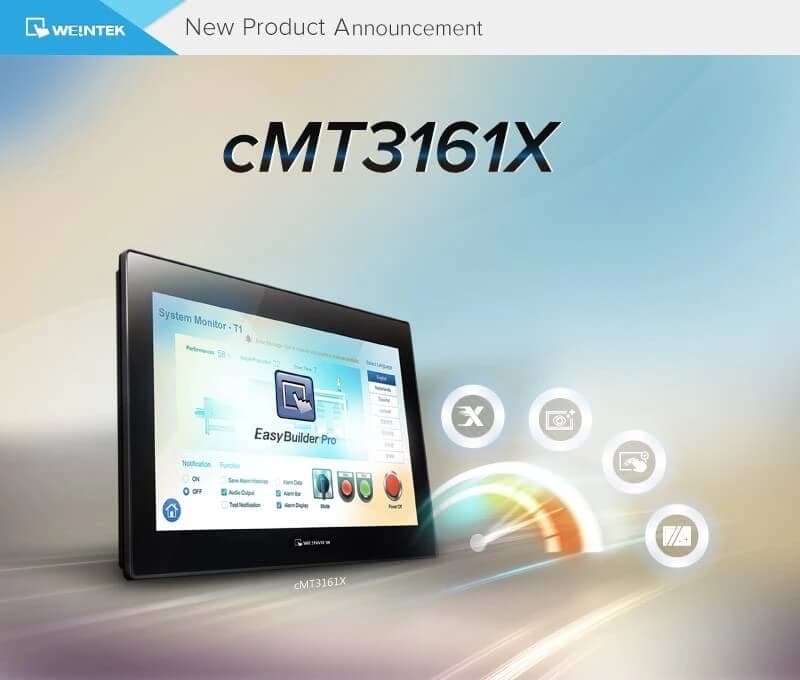

| cMT3161X | cmt3162x | |
|---|---|---|
| Display | 15.6" IPS | 15.6" IPS |
| Resolution | 1920 x 1080 px | 1920 x 1080 px |
| Touch Panel | Capacitive | Capacitive |
| CPU | Quad-core 1.6GHz | Quad-core 1.6GHz |
| External Storage | USB x1 | USB x1 |
| Ethernet | 1 | 2 |
| Serial Port | Con.A:COM1 RS-485 2W/4W COM3 RS-485 2W Con.B: COM1 RS-232 4W COM3 RS-232 2W*Con.A: COM1 RS-485 2W/4W COM3 RS-485 2W Con.B: COM1 RS-232 4W COM3 RS-232 2W* | Con.A: COM1 RS-485 2W/4W COM3 RS-485 2W CAN Bus Con.B: COM1 RS-232 4W COM3 RS-232 2W*Con.A: COM1 RS-485 2W/4W COM3 RS-485 2W CAN Bus Con.B: COM1 RS-232 4W COM3 RS-232 2W* |
| Built-in Speaker | Yes | Yes |
| Dimensions | 400 x 263 x 27.6 mm | 400 x 263 x 27.6 mm |
| CAN Bus | No | Yes |
| Siemens MPI | No | Yes |
| PDF Reader | Yes | Yes |
| Media Player | Yes | Yes |
| Media Streaming | Yes | Yes |
| IP Camera | Yes | Yes |
| USB Camera | Yes | Yes |
| Vibration Alert | No | Yes |
| Touch Gesture | Yes | Yes |
| Energy Demand | No | Yes |
| BACnet Schedule | No | Yes |
| Event Gantt Chart | No | Yes |
| Barcode Scanner (Android) | No | Yes |
| Action Trigger | No | Yes |
| MQTT | Yes | Yes |
| OPC UA Client | Yes | Yes |
| OPC UA Server | No | Yes |
| Database Server | No | Yes |
| WebView | Yes | Yes |
| EasyAccess 2.0 | Licence sold separately | Licence sold separately |
| CODESYS | No | Licence sold separately |
